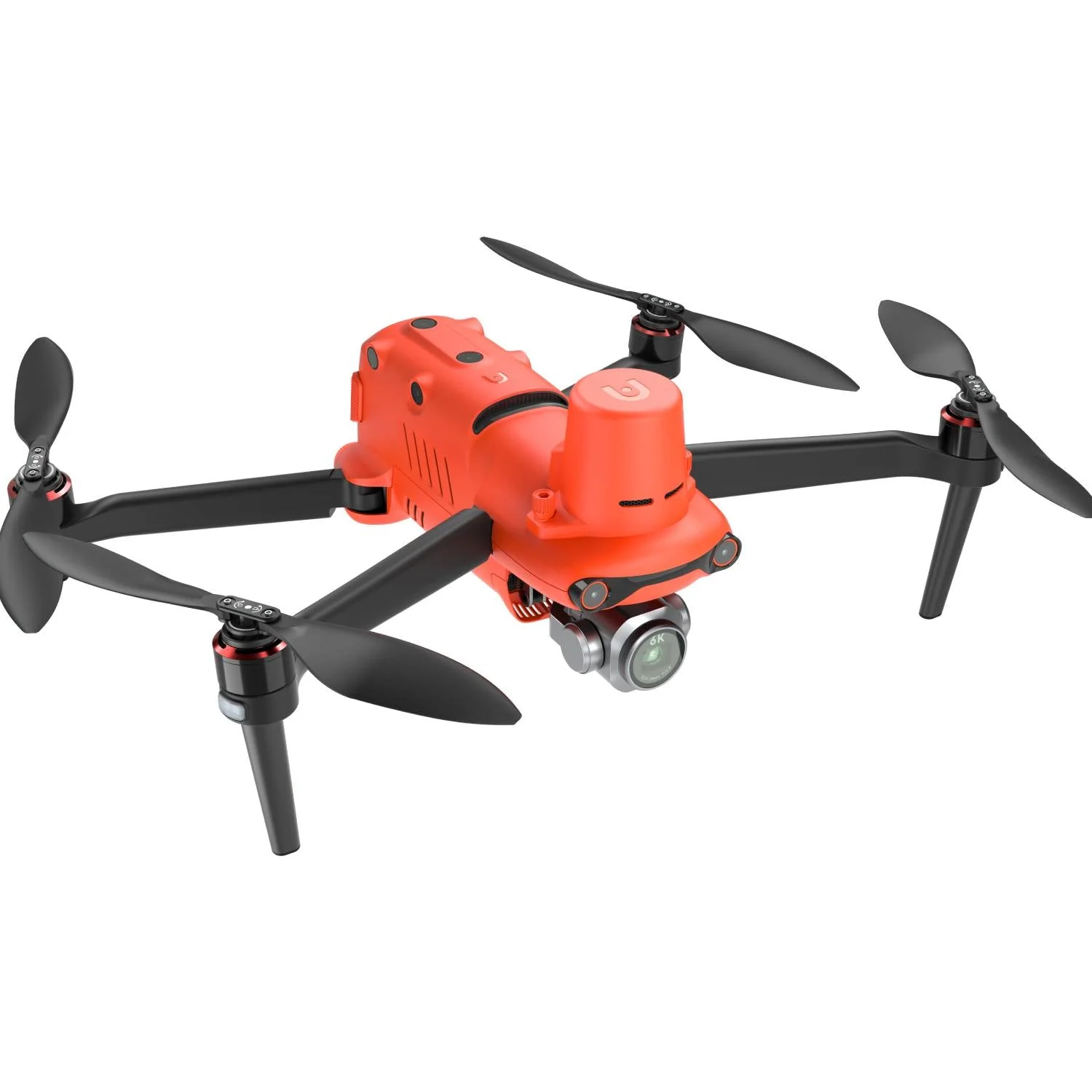

EVO II Pro RTK Drone

The Autel Robotics EVO II Pro RTK inherits all features of the original EVO II Pro drone and integrates an entirely new RTK module on top, which provides real-time centimeter-level positioning data and supports Post-Processing Kinematic (PPK).

Featured a 1-inch, 20-megapixel CMOS sensor F/2.8-F/11 aperture, and 8x zoom, EVO II Pro TRK gives you the versatility and ability to capture the best in a variety of mission scenarios.
Spot Temperature Measurement
Come with 720° omnidirectional obstacle avoidance and advanced Mission Planning, the EVO II RTK drones offer you a 9km maximum transmission range, 36 minutes flight time and can reach a top speed of up to 20m/s, making it the perfect flying companion for your daily missions.

Centimeter-Level Positioning System

The EVO II RTK series integrates an entirely new RTK module, which provides real-time centimeter-level positioning data and supports Post-Processing Kinematic (PPK). The EVO II RTK aircraft can record the original satellite observation data, camera exposure parameters and various other data. The positioning system supports A-RTK base station and RTK network, which helps to achieve accurate and stable data acquisition in complex operation environments.

Mission Execution With Advanced Intelligence

EVO II RTK Series aircraft offer users a full range of intelligent features and solutions to suit a variety of mission needs. Using advanced flight control and the latest AI technology, the aircraft can significantly improve mission work flows and help reduce operating costs.

Creating Mission, Waypoint Flying, 720° Omnidirectional sensing & Obstacle avoidance, Photo Replication, No Need Ground Control Points, High Precision RTK/ PPK Positioning, Support A-RTK High Precision GNSS Base Station.

No Need for Ground Control Points

The EVO II RTK Series leverages a high precision RTK module, supports PPK and time synchronization, and is not limited by communication links or network coverage.
- RTK / PPK

  The Evo II RTK Series supports third party base stations with NTRIP capability
- RTK High-precision GNSS Base Station

  The EVO II RTK Series supports RTK high-precision GNSS base station to obtain real-time differential data, which makes it possible to obtain the accurate coordinates of the designated target point.
- RTK / PPK

  The Evo II RTK Series supports third party base stations with NTRIP capability
- RTK High-precision GNSS Base Station

  The EVO II RTK Series supports RTK high-precision GNSS base station to obtain real-time differential data, which makes it possible to obtain the accurate coordinates of the designated target point.
Photo Replication

For repeatable data acquisition missions, you can record the drone’s previous shooting positions. All the gimbals, camera, and aircraft movements will be replicated, thus producing a full record of the entire mission.

Autel EVO II Pro RTK 6K Camera
- 1″ CMOS Sensor & F/2.8-F/11 Adjustable Aperture
Autel Robotics EVO II Pro RTK 6K drone camera with 1-inch sensor captures incredibly smooth 6K Ultra HD video and 20MP photos. And An adjustable aperture from f/2.8 to f/11 giving you wide-ranging adjustment over how much light gets into the camera.

As for resolution, the 6K camera can achieve up to 5472 x 3648 in still and 6K/ 30fps, 4K/ 60fps in video. Also with a bit rate of up to 120 Mbps.

1" CMOS

Imaging Sensor

20MP

Photos Resolution

6K/30fps

HDR Video
- 6K Hyper-lapse photography and More Shooting Modes
The EVO II Pro RTK camera drone support a variety of shooting modes, including Single-shot; Burst shooting; Auto exposure bracketing (AEB); Time-lapse (JPEG/RAW format); High-dynamic-range (HDR) imaging; HyperLight; Long exposure
- Capture the night time world
The EVO II Pro RTK camera featured Hyper-light mode for shooting in low-light conditions with 2D and 3D noise reduction smoothing motion blur and reducing noise.
Autel EVO Nano Drone Dynamic Track 2.1
- 10-bit A-Log Color Recording
This mode allows for greater flexibility in post-production for the professional photographer 10-bit allows the EVO II Pro to record up to 1 billion colors. The EVO II Pro retains rich detail in shadows and highlights, allowing greater flexibility in post-production.
- Connect Autel Live Deck to display live video from EVO II on any device
The live video from EVO 2 RTK drone can be displayed on your remote controller or connect with Autel Live Deck to display on any device including computer, TV, Ipad via USB, HDMI, Ethernet, to meet the requirements of projection monitoring and live streaming.
- Adjust field-of-view to any angle from 0° to 90° while flying
EVO II Pro RTK Drone contains a high-precision 3-axis gimbal that keeps the camera steady while the aircraft is flying, ensuring image stability and clarity. Also, You can use the remote control's gimbal pitch dial to adjust the pitch axis to any angle from 0° to 90° at any time.
- Cameras interchangeable
Autel EVO II Series Dones is one aircraft with three camera options. All cameras for Evo II can be purchased separately and are interchangeable!

EVO II - AI Enhanced Dynamic Track

EVO II Pro RTK can model location and speed of targets simultaneously, predict their trajectory accurately, avoiding obstacles during flight, and track them continuously while identifying up to 64 objects at the same time. The function can track the subject in three modes: behind, side-by-side, or fixed position.
Autel EVO Nano Drone Dynamic Track 2.1
360° Obstacle Avoidance

EVO 2 Pro RTK Drone’s front, rear, left, right, top, and bottom binocular vision sensing systems use image data to calculate the distance between the aircraft and potential obstacles. Begin detecting potential hazards at up to 30m away and let EVO II accurately control the speed of the drone to avoid a collision.

Multiple Intelligent Flight Modes

Autel EVO II Drone supports multiple smart Flight Modes includes Dynamic Track, Parallel Track, Tripod Track, Viewpoint, Orbit, Gesture control, VR Flight, Waypoint and more.

Enterprise Smart Controller

All EVO II Enterprise Bundles are equipped with Autel's 7.9" 2000-nit Smart Controller for maximum viewing when operating.
Learn More>> 7.9" Autel Smart Controller
Failsafe & Automatically Return Home

EVO 2 Pro RTK will return home automatically when Low Aircraft Battery Level and Communication Lost. Additionally, EVO 2’s bottom binocular vision camera to create a density depth map. Then, it calculates the depth map's flatness and angles to ensure an accurate and safe landing.

Light, Efficient And Reliable

The EVO II RTK series inherits the foldable design of the original EVO II series, making it compact, light, portable and ready to fly in just a matter of seconds. The powerful flight performance gives you a more efficient and stable flight, even in harsh conditions. Alongside a 9km maximum transmission range, the aircraft offers a flight time of up to 36 minutes and can reach a top speed of up to 20m/s, making it the perfect flying companion for your daily missions
Autel EVO II RTK Series Application Field

Camera

Gimbal

Aircraft

Obstacle Avoidance

Remote Controller and Image Transmission

Battery

Camera	Gimbal	Aircraft
Obstacle Avoidance	Remote Controller and Image Transmission	Battery

EVO II Pro RTK Camera Specifications

Sensor	1" CMOS Effective Pixels: 20 MP Performance temperature: -10~60°C
Lens	FOV: about 82° 35mm Format Equivalent: 28.6 mm @ f/2.8 Aperture: f/2.8–f/11 Focus range: 1m to infinity (with auto focus)
ISO Range	Video: 100-6400 Photos: 100-12800"
Shutter Speed	Electronic Shutter: 8 ~ 1/8000s
Digital Zoom	1 - 8 times
Photo Mode	Single shot; Continuous shooting (AEB/Burst): 3, 5, 3 by default; Timed shooting: 2S, 5S, 7S, 10S, 20S, 30S, 60S, default 5S; Pure night shot: support 4K Jpeg; HDR: Support 4K Jpeg; Long exposure: up to 8s;
Photo Resolution	5472x3648 (3:2) 5472x3076 (16:9) 3840x2160 (16:9)
Photo Format	JPG(default); DNG
Video Resolution	6K 5472x3076 p30/p25/p24 5K 4800x2700 p60/p50/p48/p30/p25/p24 4K 3840x2160 p60/p50/p48/p30/p25/p24 2.7K 2720x1528 p120/p60/p50/p48/p30/p25/p24 1080P 1920x1080 p120/p60/p50/p48/p30/p25/p24
Effective Frame	5472×3648
Video Format	MOV(default); MP4
Codecs	H.264 / H.265
Max Video Bitrate	120Mbps
Support File System	FAT32(≤ 32 GB) exFAT(> 32 GB)
Support Memory Card Type	Class4 / Class10 / U3 Capacity：4G / 8G / 16G / 32G / 128G

Gimbal

Gimbal	Three-axis stabilization
Mechanical Range	Tilt: -135° to +45° Heading: -100° to +100°
Controllable Range	Tilt: -120° to +30° Heading: -90° to +90°
Maximum Control Speed (Tilt)	300°/s
Angle Jitter	±0.005°

Aircraft

Weight (with propeller and battery)	1237g±0.5g
Wheelbase	397 mm
Maximum Take-off Altitude	6000 m
Max Ascent Speed	5 m/s（automatic flight） 8 m/s（manual control）
Max Descent Speed	4 m/s
Max Horizontal Flight Speed	72 km/h（positioning mode）
Max Tilt Angle	33°（positioning mode）
Max Angular Velocity	120°/s
Max Flight Time	36 minutes
Operating Temperature Range	0℃ to 40℃
Maximum Resistance to Wind	39-46 mph (Level 8)
Operating Frequency	2.400 GHz to 2.4835 GHz
Transmission Power (2.4G)	FCC：≤26 dBm ISED：≤26 dBm CE：≤20 dBm RCM：≤20 dBm SRRC：≤20dBm
Hovering Accuracy	When RTK is enabled and working normally: Vertical: ±0.1 m; Horizontal: ±0.1 m RTK is not enabled: vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GNSS positioning works normally) Level: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GNSS positioning works normally)
Image Position Compensation	The position of the camera center relative to the phase center of the airborne A-RTK antenna, under the body axis system: (-2.63, 0.31, 83.5) mm, and the photo EXIF coordinates have been compensated. The positive XYZ axis of the body axis system points to the front, right, and bottom of the aircraft respectively.

Sensing System (Obstacle Avoidance)

Sensing System	Omnidirectional Obstacle Sensing
Forward	Precision Measurement Range: 0.5-20 m Detectable Range: 0.5-40m Effective Sensing Speed: <15m/s FOV: Horizontal: 60°, Vertical: 80°
Backward	Precision Measurement Range: 0.5-16 m Detectable Range: 0.5-32m Effective Sensing Speed: <12m/s FOV: Horizontal: 60°, Vertical: 80°
Upward	Precision Measurement Range: 0.5-12 m Detectable Range: 0.5-24m Effective Sensing Speed: <6m/s FOV: Horizontal: 60°, Vertical: 50°
Downward	Precision Measurement Range: 0.5-11 m Detectable Range: 0.5-22m Effective Sensing Speed: <6m/s FOV: Horizontal: 90°, Vertical: 70°
Sides	Precision Measurement Range: 0.5-12 m Detectable Range: 0.5-24m Effective Sensing Speed: <10m/s FOV: Horizontal: 60°, Vertical: 50°
Operating Environment	Above: The surface has rich textures and sufficient lighting conditions (>15 lux, normal indoor fluorescent lighting environment); the surface is made of diffuse reflective material and the reflectivity is >20% (such as walls, trees, people, etc.) Below: The ground has rich textures and sufficient lighting conditions (> 15 lux, indoor fluorescent lamp is normally irradiated by the environment); the surface is made of diffuse reflective material and the reflectivity is> 20% (such as walls, trees, people, etc.)

Remote Controller and Image Transmission

Operating Frequency	2.400 GHz to 2.4835 GHz
Max Transmission Distance	FCC：9 km（without interference or obstruction） CE：5 km（without interference or obstruction）
Real-time Image Transmission Quality	720p@30fps / 1080p@30fps
Maximum Bit Rate of Real-time Image Transmission	40Mbps
Transmission Power (2.4G)	FCC：≤26 dBm ISED：≤26 dBm CE：≤20 dBm RCM：≤20 dBm SRRC：≤20dBm
Display screen	3.26" OLED 854（W） * 480（H）Pixel Directly preview the video without connecting a mobile phone
Remote Controller Battery	5000mAh
Run Time	3 hours
Charging Time	2 hours fast charge
Supported Mobile Device Size	Max Length: 3.30" (84mm) Max Thickness: 0.51" (13mm)
Supported USB Port Types	Lightning, Micro USB (Type-B), USB-C
Working current/voltage	1.7A@3.7V

Intelligent Flight Battery

Capacity	7100 mAh
Voltage	11.55 V
Max Charging Voltage	13.2 V
Battery Type	LiPo 3S
Energy	82 Wh
Net Weight	0.81 lbs (365 grams)
Charging Temperature Range	41°F to 104°F (5°C to 40°C)
Storage Temperature and Humidity	-10~30℃，65±20%RH
Recommended Storage Temperature	22-28℃
Max Charging Power	93W
Charging Time	90 minutes

Intelligent Flight Battery Manager

Voltage	13.2 V
Charging Temperature Range	5℃ to 45℃

Charger

Input	100-240 V, 50/60 Hz, 1.5A
Output	13.2 V = 5 A 5V=3A 9V=2A 12V=1.5A
Voltage	13.2±0.1V
Rated Power	66W

Autel EVO II Pro RTK

EVO II Pro RTK

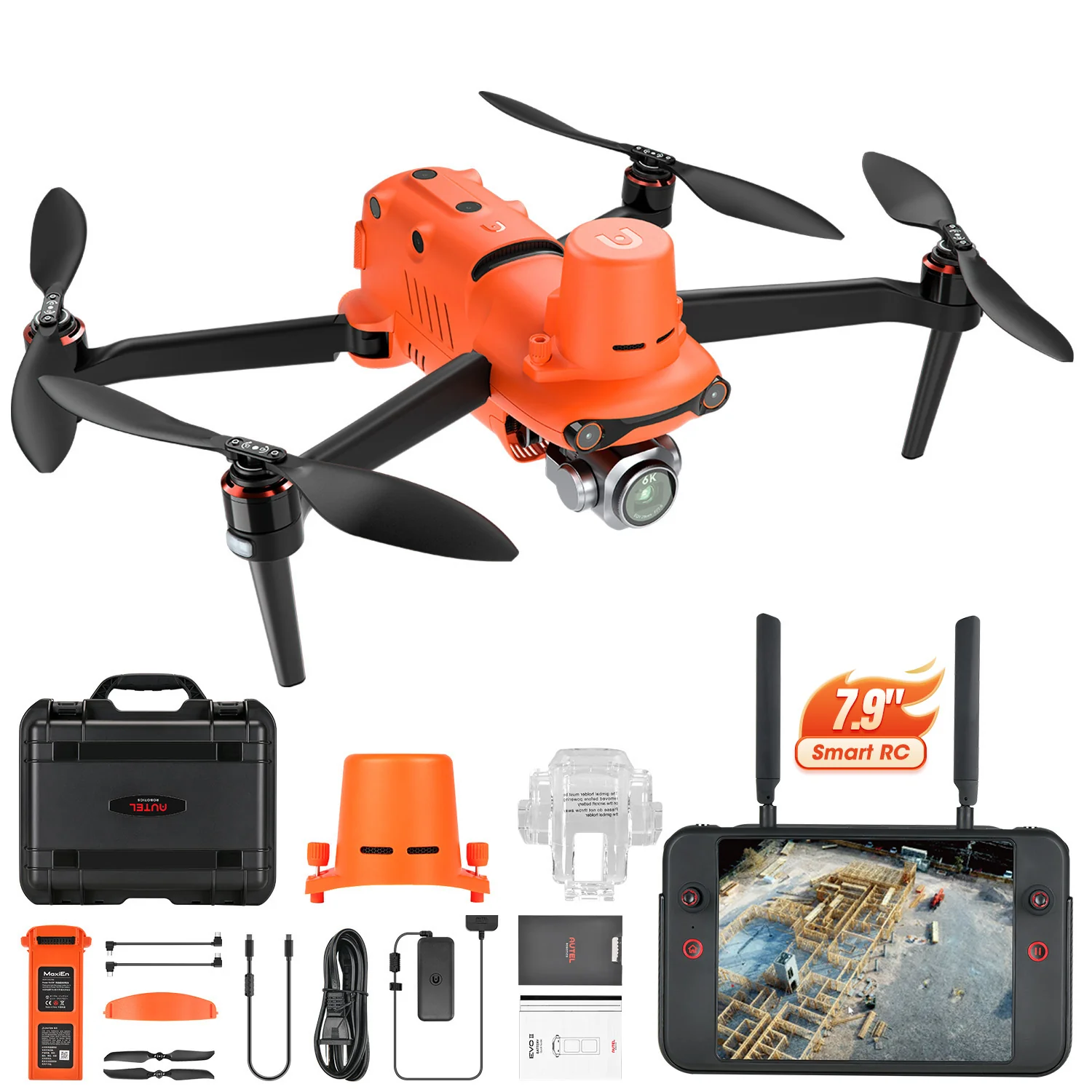

Autel Robotics EVO II Pro RTK 6K Drone Rugged Bundle With Autel 7.9" Smart Controller
