Autel Robotics EVO II Series RTK Module

Autel EVO II RTK Module

The Autel EVO 2 RTK module provides real-time centimeter-level positioning data and supports Post-Processing Kinematic (PPK). The aircraft can record the original satellite observation data, camera exposure parameters and various other data. The positioning system supports A-RTK base station and RTK network, which helps to achieve accurate and stable data acquisition in complex operation environments.

This model can support the following models:

1. EVO II Pro RTK
2. EVO II Pro Enterprise
3. EVO II Dual 640T RTK
4. EVO II Dual 640t Enterprise Bundle

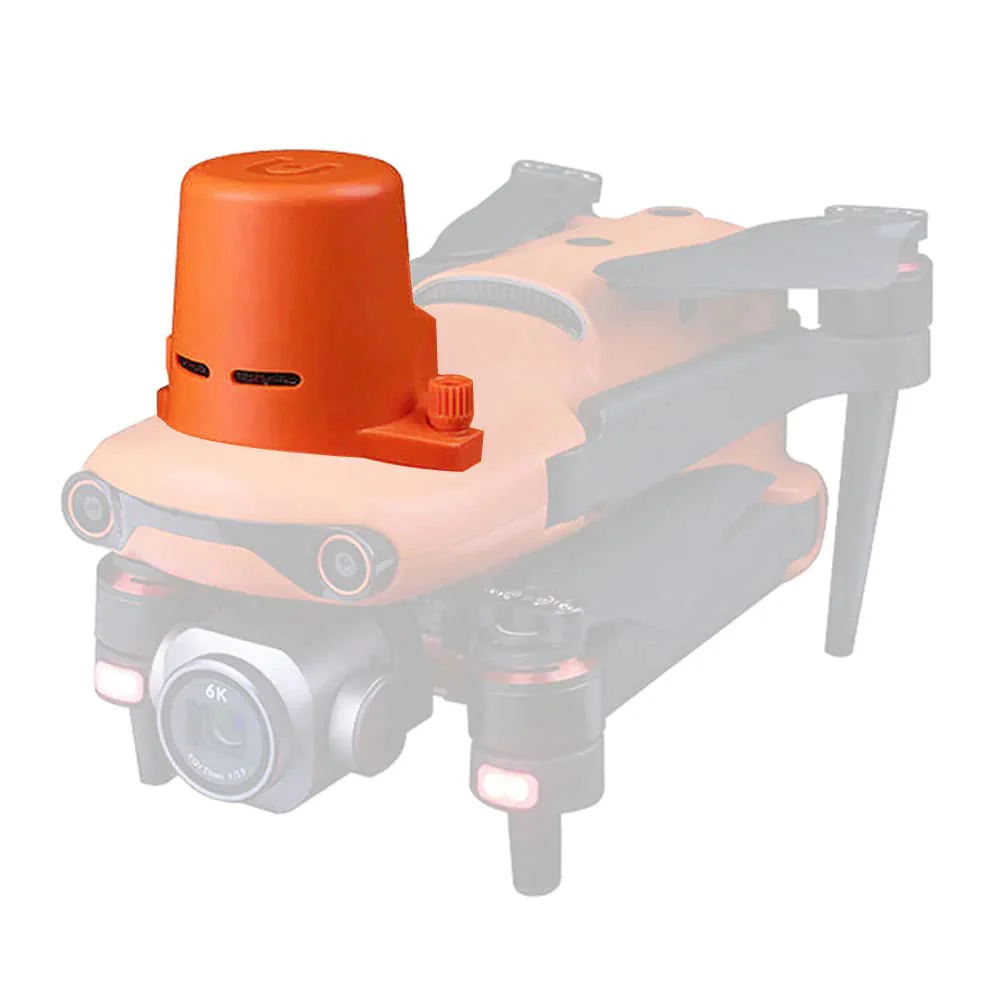

EVO II Pro and EVO II Dual 640T Rugged Bundle do not have interfaces on the top of the fuselage, so they cannot be matched. There is no requirement for the version, and the RTK module V2/V3 series can be supported.

Autel Robotics EVO II RTK Module Features

• Real-time centimeter-level positioning data and supports post-processing kinematic
• Positioning system supports A-RTK base station and RTK network
• Compatible with the Autel Robotics EVO II Enterprise series aircraft

Autel Robotics EVO II RTK Module Specs

Dimensions	55.5*72.5*57 mm
Weight	59.5 g

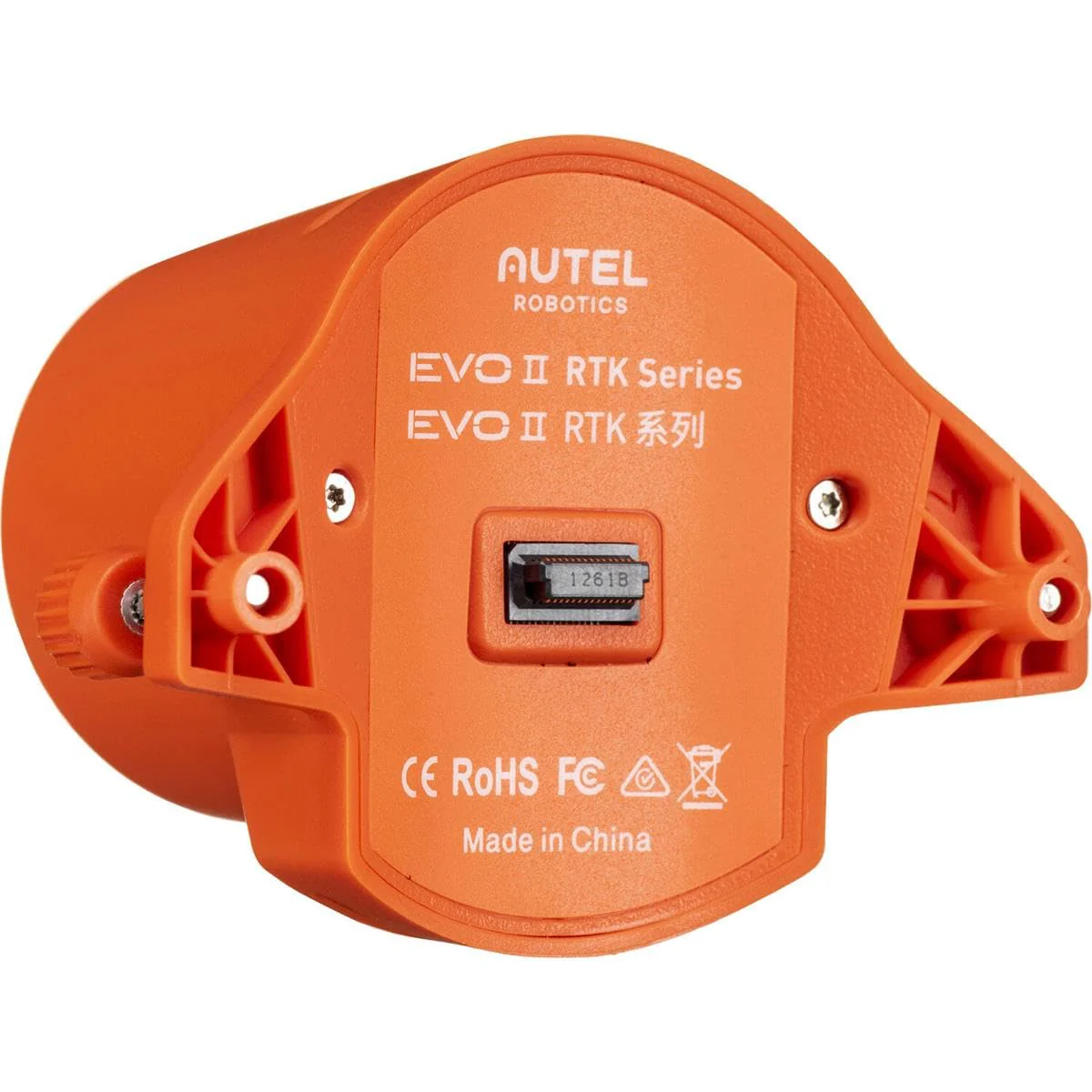

Connections	Floating Connectors
Power	~ 3W
RTK Positioning Precision	1.5 cm + 1 ppm（(Vertical）; 1 cm + 1 ppm（Horizontal）
